Getting your chain line right on your BMX race bike is one of those details that’s easy to overlook, but dial it in properly and your whole ride feels faster, smoother, and more reliable from the gate to the line.
Put simply, your chain line is the alignment between your front chainring and rear sprocket. When everything sits straight, your chain runs clean with minimal friction. If it’s off, even slightly, you’re introducing drag, noise, and unnecessary wear that can cost you both speed and parts over time.
The first thing to check is alignment.
Stand over the bike and look down the chain, the front chainring to rear sprocket should be perfectly straight. If it’s pulling at an angle, you’ll need to make adjustments. On most BMX race bike setups, this can be done by fine tuning one of the following:

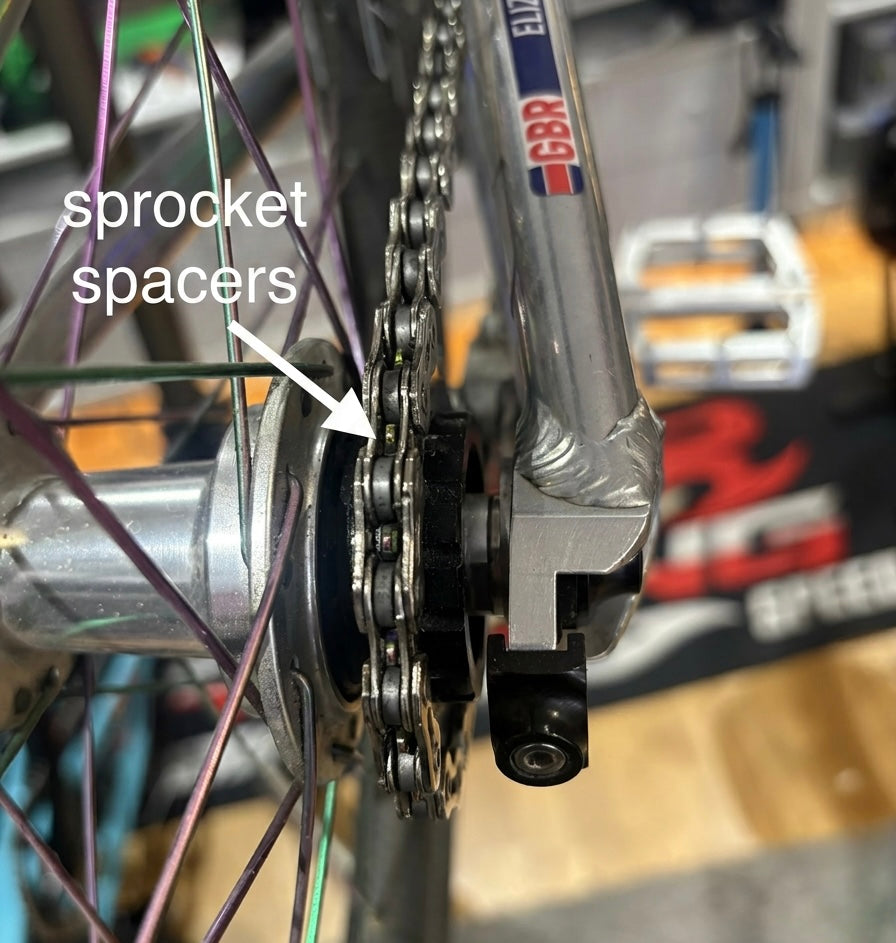

(a) Sprocket spacers. Take off the back wheel and locking nut for the sprocket and add or remove spacers to bring the sprocket away from or towards the frame as needed.
(b) Chainring spacers. These 1mm or 2mm spacers sit over your chainring nut to space the chainring out (if chainring if mounted outside the cranks) or in (if chainring is mounted inside the cranks). Not you might need to buy longer chainring bolts if using chainring spacers.
(c) Bottom bracket spacers. These sit in your bottom bracket against the frame and bring your chainring and pedals out. If you need to bring your chainring in then you might need to remove the spacers. Note in this pic there are no bottom bracket spacers, the bottom bracket is flush to the frame.
(d) Mounting the chainring. Some cranks allow you to mount the chainring inside or outside the spider
Note - on pics above the chainring is mounted inside the spider.
(e) Fine tune wheel alignment. Using your chain tensioners you can fine tune the rear wheel which may get the chain line just right. It’s a small tweak, but it makes a big difference.
Why does it matter?
Efficiency. A straight chain line means less resistance, which means more of your power is going straight into forward motion. In BMX racing, where every pedal stroke counts, that’s free speed you don’t want to miss out on. It also reduces the likelihood of your chain derailing under load, something no rider wants mid-moto.
Then there’s durability. Misaligned drivetrains wear components faster. Chains stretch unevenly, teeth wear prematurely, and bearings can take unnecessary stress. Get it right, and your drivetrain will not only perform better, it’ll last longer too.
One tip—don’t rely purely on your visuals. Use spacers and measure if needed to get things spot on, especially when running different crank or hub setups. Cruiser builds, with their longer wheelbase and larger wheels, can exaggerate poor alignment more than a standard 20” setup.
In short, the perfect chain line is all about smooth, efficient power delivery. It’s a simple setup detail that pays back every time the gate drops.
